Designed for seamless integration, the V.I.O. Stream is a Real Time Streaming Protocol enabled device capable of streaming full HD 1080p video wirelessly or via IP over USB.

V.I.O. pioneered the POV (point of view) category over a decade ago; video quality, durability, and innovation are hallmarks of the brand. The V.I.O. Stream continues that tradition, combining a native HD sensor with advanced exposure controls and settings to create stunning video under both optimal and challenging light conditions.
Designed for seamless integration, the V.I.O. Stream is an RTSP (Real Time Streaming Protocol) enabled device capable of streaming full HD 1080p video wirelessly or via IP over USB.

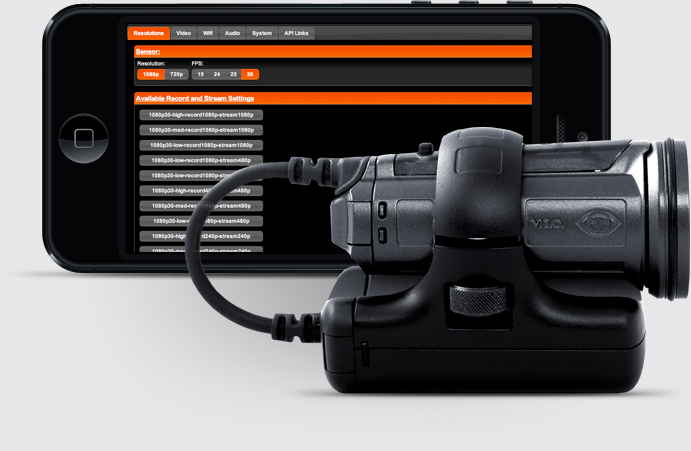

Complete control of the device and depth of features can be controlled from any browser-based device.
Meeting IP67 environmental standards, the V.I.O. Stream is waterproof, shockproof, and dustproof. Powerful and compact, the Stream offers a variety of static or body worn mounting options.
WiFi and USB enabled, the V.I.O. Stream can be configured as an access point or client to existing networks, seamlessly melding with other devices.
DETAILED SPECIFICATIONS
Web Programmable Streaming Video Camera
Streaming Protocol: RTSP/RTP Video
Streaming & Recording Resolutions: 1080@30/25/24, 720@60/50/30/25, 480@30/25, 240@15
Dual Encoding: Yes (High bitrate record + low bitrate stream)
Compatible Video Players: Any supporting RTSP/H.264/AAC
Compatible Operating Systems: Android, iOS, Windows CE, Windows 7, Vista, Windows XP, Linux, OSX
Wireless: 802.11 b/g/n 2.4GHz

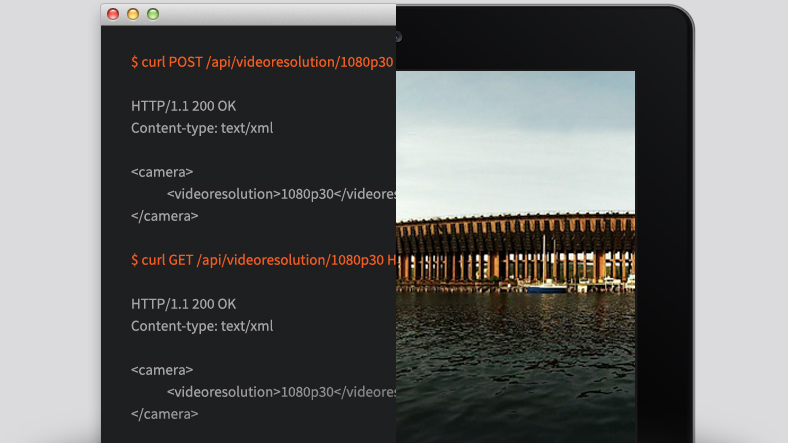

API Application Programming Interface: HTTP and XML based
Functionality: Set Resolution on sensor/stream/recording/still pictures, Record, Sharpener, Noise Filter, Exposure Metering, Exposure Compensation, Format, Set Microphone Level, Set Alert Volume, Set Recording Methods, Date/Time Overlay, Update Firmware, Restore Default Settings, Power Down, Set Bit Rate/Image Quality, Wifi Configuration
Imaging Hardware
Sensor: 1/2.7” Full HD CMOS Sensor 3 µMeter Pixel Size
Dynamic Range: 69dB
Sensitivity: 3300 mV/(lux-sec)
Operating Temp: -20degree C to 50degree C (-4 to 104f)
Processor: 32bit ARM Microprocessor, 10 Bit Image
Optics: 6 Element Glass Lens
Aperture: F/2.0 Relative Illumination at Full Field 90%
Focus Distance: .8m - Infinity
Field Of View: 142 @ 1080P, 95 @ 720P, 142 @ 480p, 142 @ 240p
Audio
Audio Codec: AAC-LC
Mic Type: Analog MEMS, -42dB at 1kHz
Resolution: 16 Bit
Sampling Rate: 16 kHz
SNR: 59dB
Data Handling
Max Storage Device 32GB MicroSDHC, Replacement cards at Class 6 or higher (Class 10 preferred)
File Functions Record, Playback, Delete, Format, Tag, Stream
Record Time 4.5 hours @1080/30 720/60 12Mbits/S

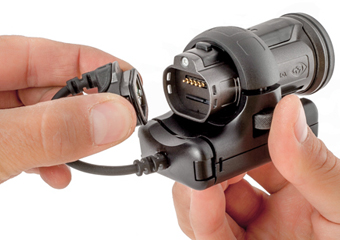

End caps USB, Battery, Custom
Battery Type Lithium-Ion External Charging
Battery run time 2.5 hours
Size & Mass

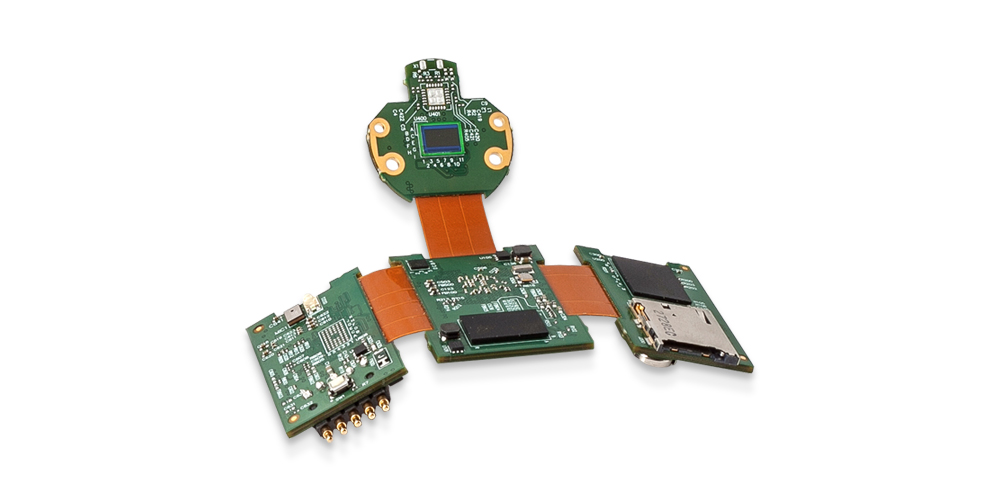

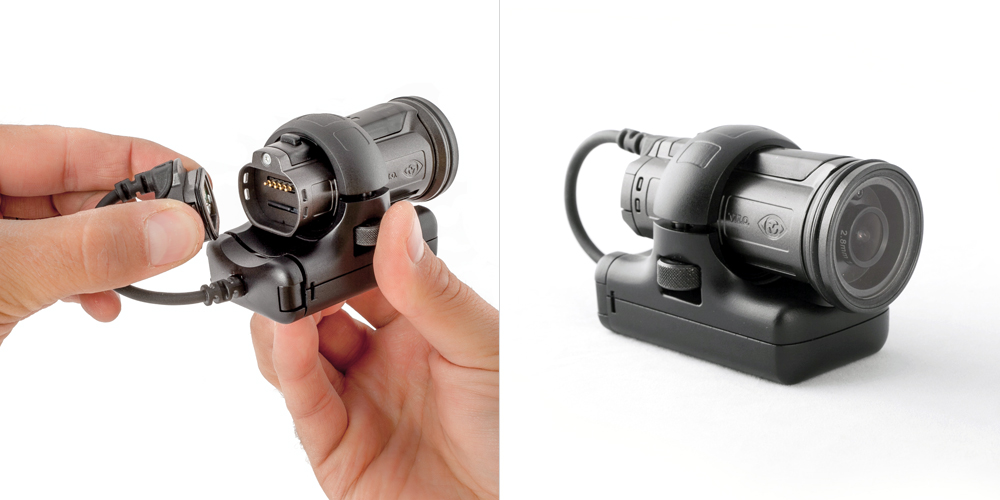

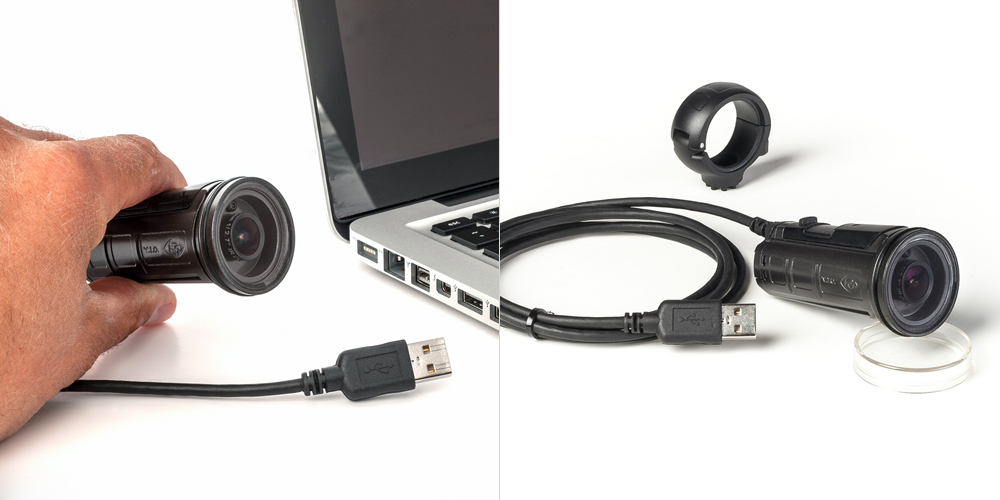

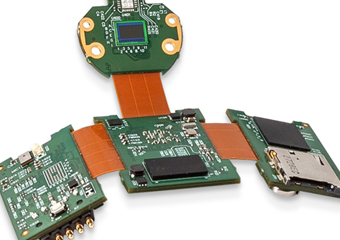

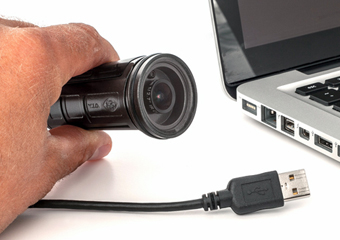

Form Factor: 1) Camera with 1.5M USB cable, 2) Camera with Battery Mount attachment 3) Rigid Flex Board Level 4) Development Board
Dimension: 80 mm. long by 36 mm.
Environmental Rating: IP67
Certifications: FCC/CE
Max USB length: 5 Meters
